Large Cx Amplitude in Beamline Model with ZTRANSVERSE
Moderators: cyao, michael_borland
-
- Posts: 5
- Joined: 23 Aug 2013, 03:50
Large Cx Amplitude in Beamline Model with ZTRANSVERSE

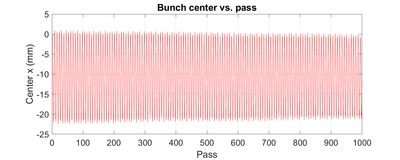

I'm trying to simulate the transverse y impedance using the ZTRANSVERSE command with BBR in a simple beamline model. The model includes elements like ILM, SREFFECTS, RFCA, and an impedance element (LST files attached). However, I'm encountering a large amplitude in the Cx value that I can't eliminate. The center position and angle have no offset and are zero, and the impedance is defined as the y-direction, so I think the question is rather why it vibrates so much in the x-direction?
- Attachments
-
- v07_14_ele_z_rev7.lte.txt
- (627 Bytes) Downloaded 134 times
-
- csr_v07_14_z_rev7.ele.txt
- (1.86 KiB) Downloaded 134 times
-
- Posts: 1945
- Joined: 19 May 2008, 09:33
- Location: Argonne National Laboratory
- Contact:
Re: Large Cx Amplitude in Beamline Model with ZTRANSVERSE
I think the problem is just that you set X_DRIVE_EXPONENT=0. That means that the horizontal wake is a monopole wake, so that there is a kick in the x plane regardless of x position. If you want to turn off the horizontal wake, set XFACTOR=0
--Michael
--Michael
