End Compensation in LSRMDLTR
Posted: 15 Nov 2018, 11:47
I am confused by the description of the end poles in LSRMDLTR. I am using version 34.4.1. The manual says the following
Here is the call to LSRMDLTR:
I use a watch point right after the undulator to grab the centroid position and momentum right after the LSRMDLTR and use a couple of sdds-functions to get the beam properties, I find:
There isn't much difference between the default settings (compensated) and taking (1,1,1), i.e. letting the beam encounter a totally uncompensated undulator. Simulation of the undulator in Radia suggests that the offset due to the completely compensated undulator should be several millimeters, but that is clearly not the case here. The modulation strength of the electron beam appears to be no different between the first two cases as well. However, when I change the second pole to be way too strong, the beam trajectory *is* disturbed.
Am I missing something about how the end compensation works?
Edit:
I have just now tried LSRMDLTR with the following settings:
It appears that the POLE_FACTORs multiply the default values given in the table in the manual rather than replacing them. That would explain why changing them all to zero (roughly) matches the Radia result and also why changing POLE_FACTOR2=10 creates a large trajectory offset. Is that what those factors do? The manual isn't clear.
The "three pole factors" are POLE_FACTOR1, POLE_FACTOR2, and POLE_FACTOR3. My understanding of the manual is that adjusting these parameters might lead to beam trajectories that are neither straight nor on-axis inside the undulator. However, when I run elegant, the effect of the end poles on the electron beam trajectory seems really small.elegant manual wrote: The three pole factors are defined so that the trajectory is centered about x = 0 and x′ = 0 with zero dispersion. This wouldn’t be true with the standard two-pole termination, which might cause problems overlapping the laser with the electron beam.
Here is the call to LSRMDLTR:
Code: Select all
UND_LH.01: LSRMDLTR,L=0.48,BU=0.225,PERIODS=12,METHOD="non-adaptive",&
FIELD_EXPANSION="ideal",ACCURACY=0.001,N_STEPS=2000,LASER_WAVELENGTH=7.83e-07,&
LASER_PEAK_POWER=100.0e06,LASER_W0=0.000210,&
POLE_FACTOR1=1,POLE_FACTOR2=1,POLE_FACTOR3=1, &
TIME_PROFILE="laserMOD7.sdds=t+A"
Code: Select all

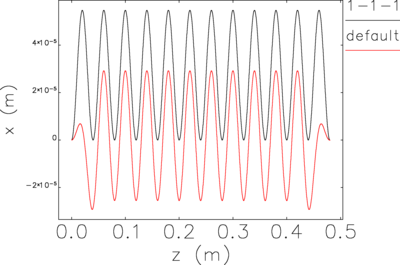

default (2nd to last line commented out) -> Cx: -3.0e-8 m, Cxp: 1.2e-8 rad
1,1,1 (as shown above in the code block) -> Cx: -4.3e-11 m, Cxp: -4.5e-7 rad
1,10,1 (grossly unmatched undulator) -> Cx: -3.9e-2 m, Cxp: -1.6e-1 rad
Am I missing something about how the end compensation works?
Edit:
I have just now tried LSRMDLTR with the following settings:
Code: Select all

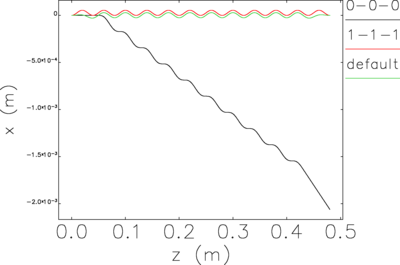

0,0,0 (uncompensated?) -> Cx: -2.2 mm, Cxp: -9.0 mrad
Radia calculation -> Cx: 3.6 mm, Cxp: 10.6 mrad
